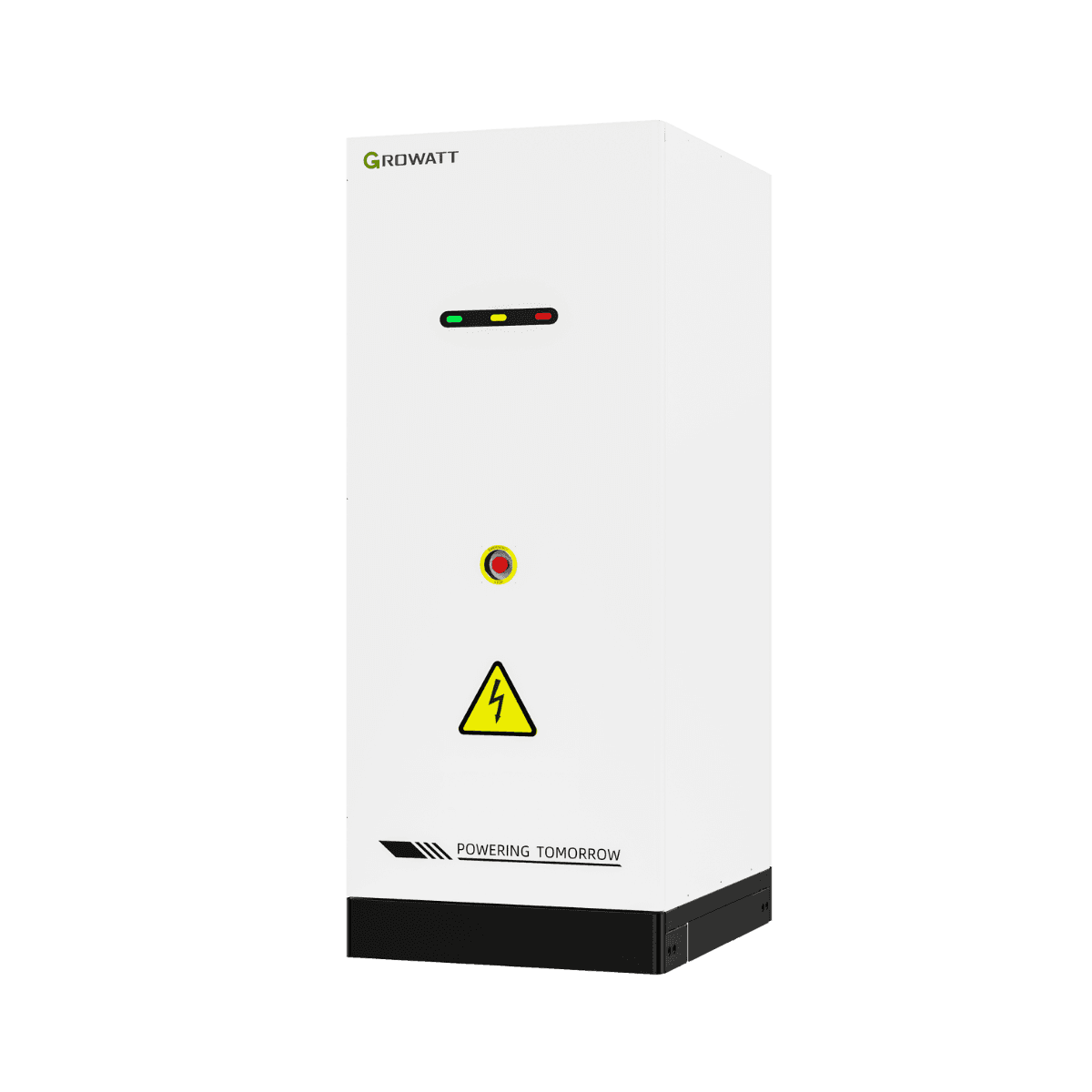

# Growatt AXE 50.0H-1HT-S1 - Commercial Battery System 50 kWh (High Voltage) - Art.No.: SC00.0000500

## Specifications

- **Brand**: Growatt
- **HS code**: 8507600090
- **Manufactor**: Growatt
- **Net Height**: 2000 MILLIMETER
- **Net Length**: 1000 MILLIMETER
- **Net Weight**: 2471 KILOGRAM
- **Net Width**: 800 MILLIMETER
- **Origin**: China
- **Battery capacity**: 50 KILOWATT
- **Ingress Protection**: IP55
- **Number of phases**: 3 phase
- **Voltage battery**: High
- **Warranty in Years**: 5

## Growatt AXE 50.0H-1HT-S1: Commercial Battery System 50 kWh (High Voltage)


This commercial high-voltage battery system is designed for large-scale energy storage. It is a modular solution for optimising energy management in commercial environments, particularly for addressing grid congestion and increasing energy independence.


### Key Features


- **Battery Chemistry:** Cobalt-free Lithium Iron Phosphate (LFP) for high safety and stability.
- **System:** A fully integrated solution in a single cabinet, including 10 AXE 5.0H battery modules and a Battery Management System (BMS).
- **Capacity:** Nominal energy capacity of 50 kWh, with a usable capacity of 45 kWh.
- **Nominal Voltage:** 512V
- **Dimensions:** 1000 x 800 x 2000 mm.
- **Cooling:** Fan-driven cooling.


### Main Advantages


- **Scalability:** The modular design allows for expansion by connecting multiple cabinets in parallel.
- **Safety:** The LFP technology and the built-in BMS provide multiple layers of protection against overvoltage, short circuits, and other potential risks.
- **Ease of Installation:** A complete solution in a single cabinet and ready for transport, which significantly simplifies on-site installation.
- **High Efficiency:** Supports 1C continuous charging and discharging for efficient energy management, including peak shaving.
- **Compatibility:** Seamless integration with [**Growatt WIT hybrid inverters** ](https://www.estg.eu/en-gb/assortment/inverters?system=Growatt%20WIT-XHU%20series) for a complete and optimised energy system.
- **Robustness:** The IP55-certified design allows for both indoor and outdoor placement and is resistant to dust and splash water.


### Applications


This battery system is ideal for various commercial projects, including:


- Businesses with high energy consumption.
- Factories and industrial buildings.
- Agricultural businesses.
- Locations where grid congestion is a challenge.


### Warranty and Sustainability


The system comes with a 10-year product warranty. The LFP batteries are known for their long service life and high cycle stability, which ensures the sustainability of the installation. The wide operating temperature range of -25℃ to +55℃ and the active cooling ensure reliable performance under various conditions.

## Downloads

- [AXE 50.0 60.0H 1HT S1 EU Datasheet EN 202504](https://cdn.estg.eu/p/c/1/f/a/c1fa93979db33607af308d258f2ffcae03ab2cdc_AXE_50.0_60.0H_1HT_S1_EU_Datasheet_EN_202504.pdf)
- [Energy System WIT 29.9 50K XHU AXE 1HT S1 50 180kWh 2025](https://cdn.estg.eu/p/5/c/f/7/5cf74e888febe857aeb7b922c259d388231de592_Energy_System_WIT_29.9_50K_XHU_AXE_1HT_S1_50_180kWh_2025.pdf)
- [AXE 50.0 60.0H 1HT S1 User Manual EN 202504](https://cdn.estg.eu/p/d/2/a/9/d2a92c13f64ecbc683c224889bcbdab632044f8c_AXE_50.0_60.0H_1HT_S1_User_Manual_EN_202504.pdf)
- [C I ESS Demand Checklist EN V1.1](https://cdn.estg.eu/p/0/2/4/d/024dbfb17025ca925cfd6fdb437859215bb060ac_C_I_ESS_Demand_Checklist_EN_V1.1.pdf)
